3D Printed Case CASIO DC-810 PDA

3D Models Created with SolveSpace

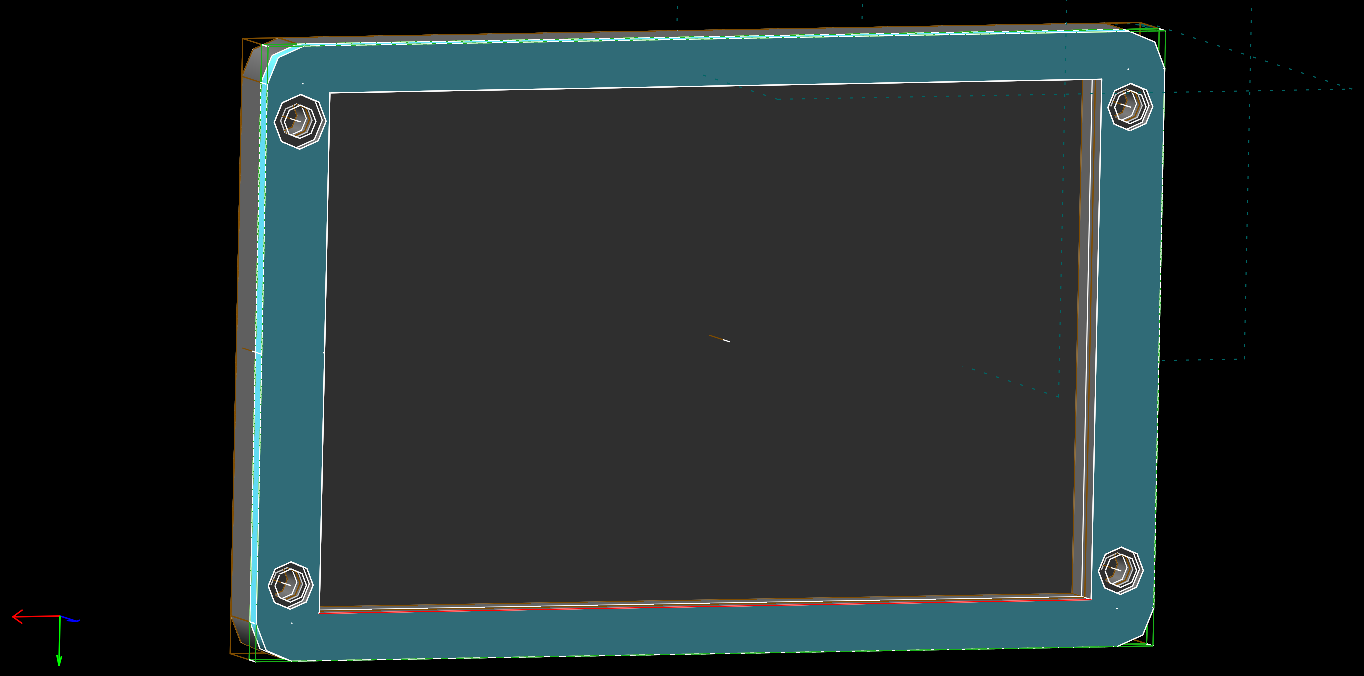

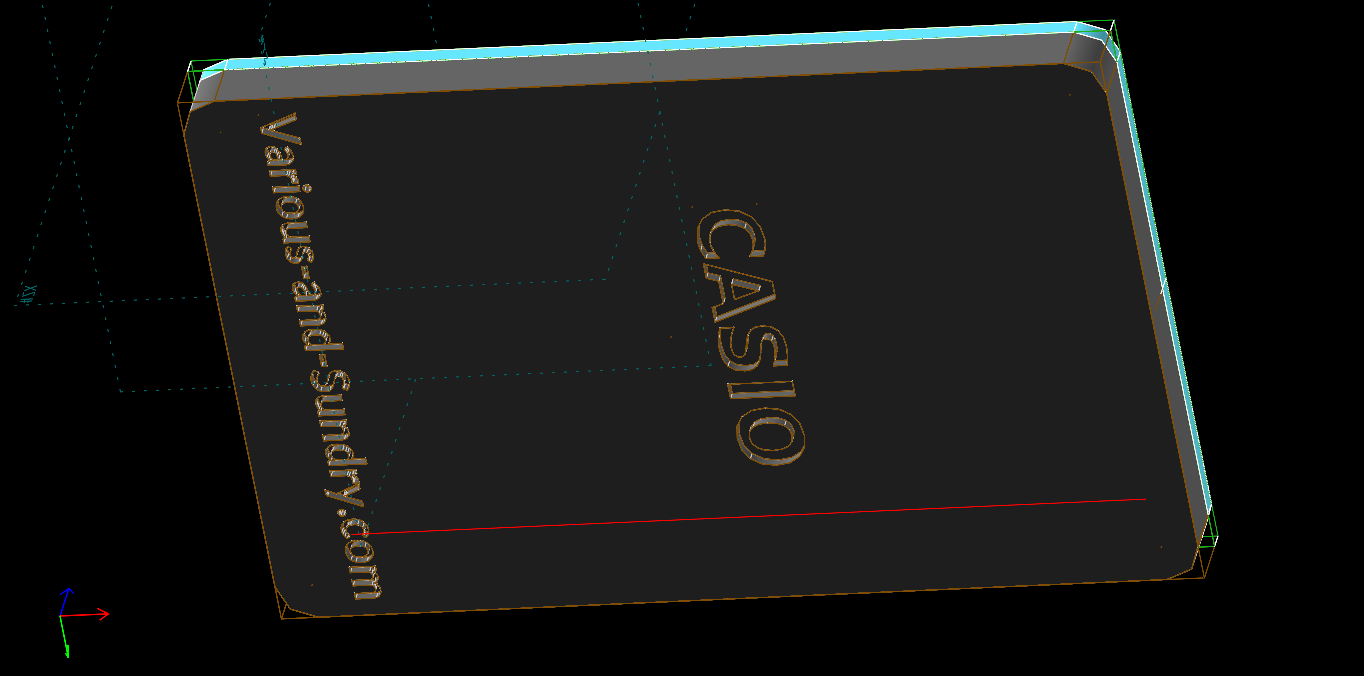

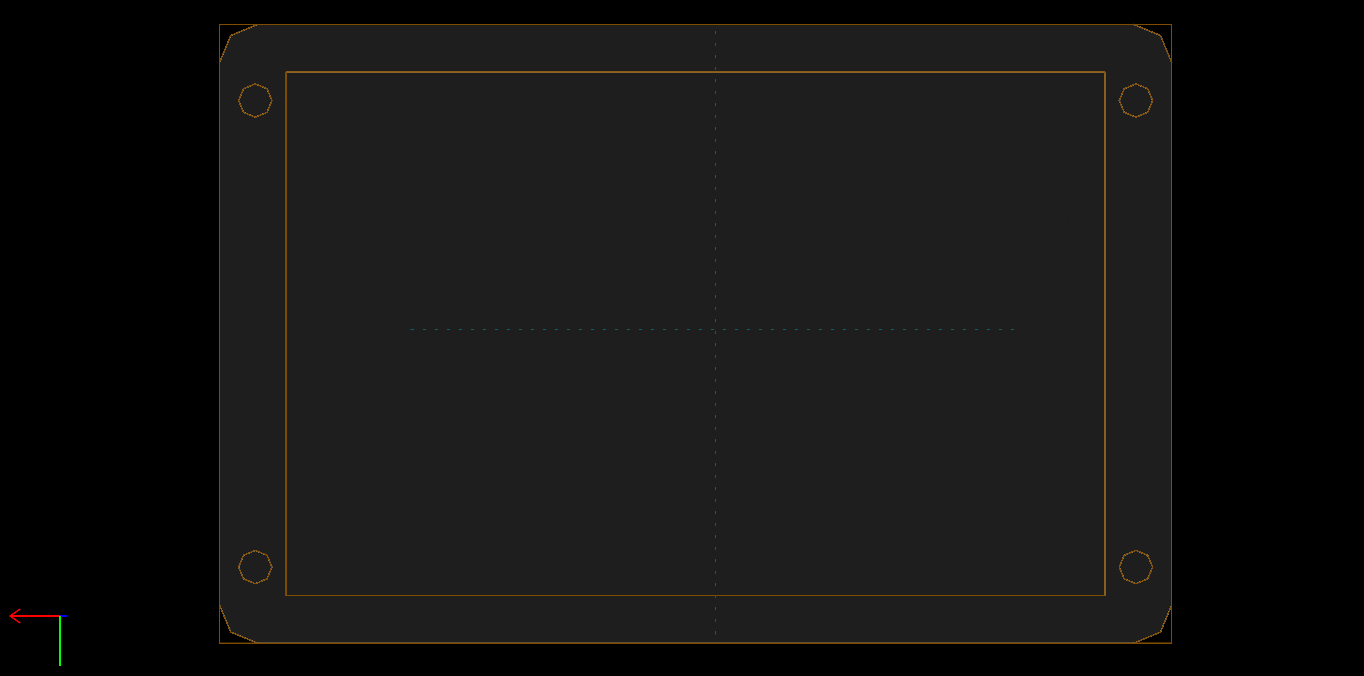

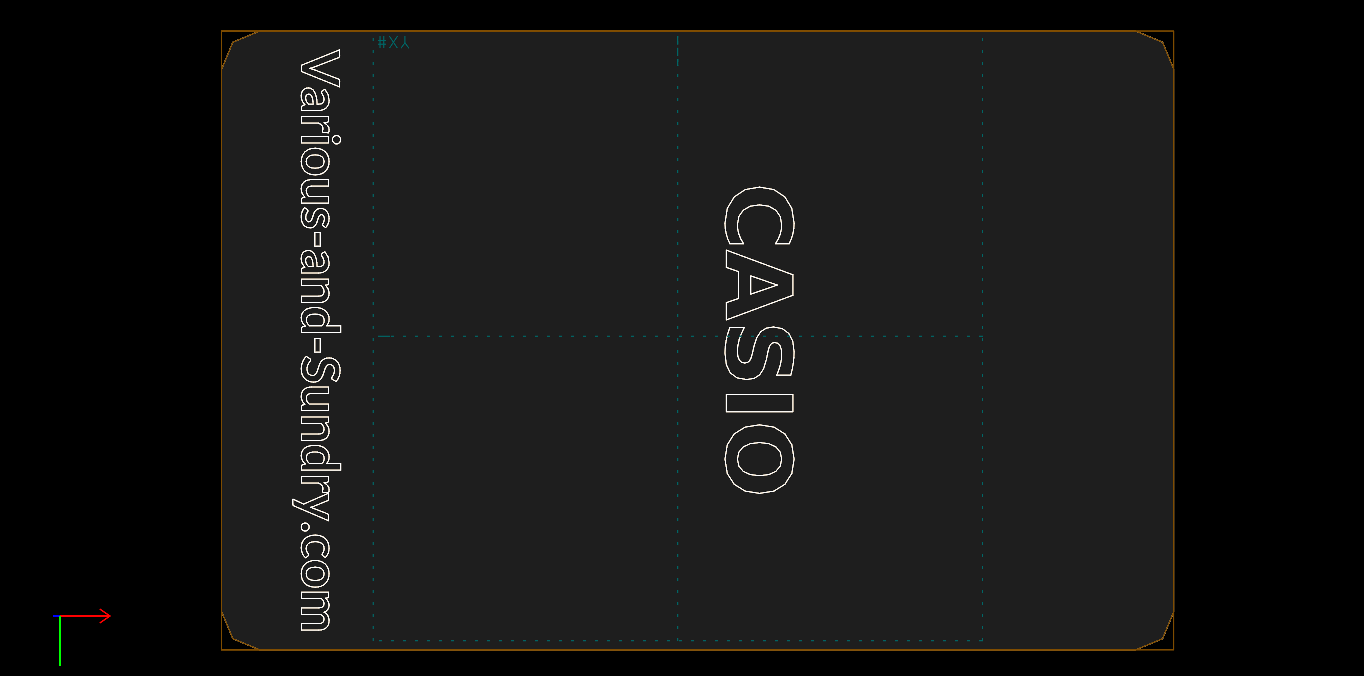

Here is the back of the case. It houses the PDA itself. It can be downloaded here as an obj for 3D printing, and the SolveSpace slvs file can be downloaded here.

CASIO DC-810 PDA Case 3D Model Back
CASIO DC-810 PDA Case 3D Model Back

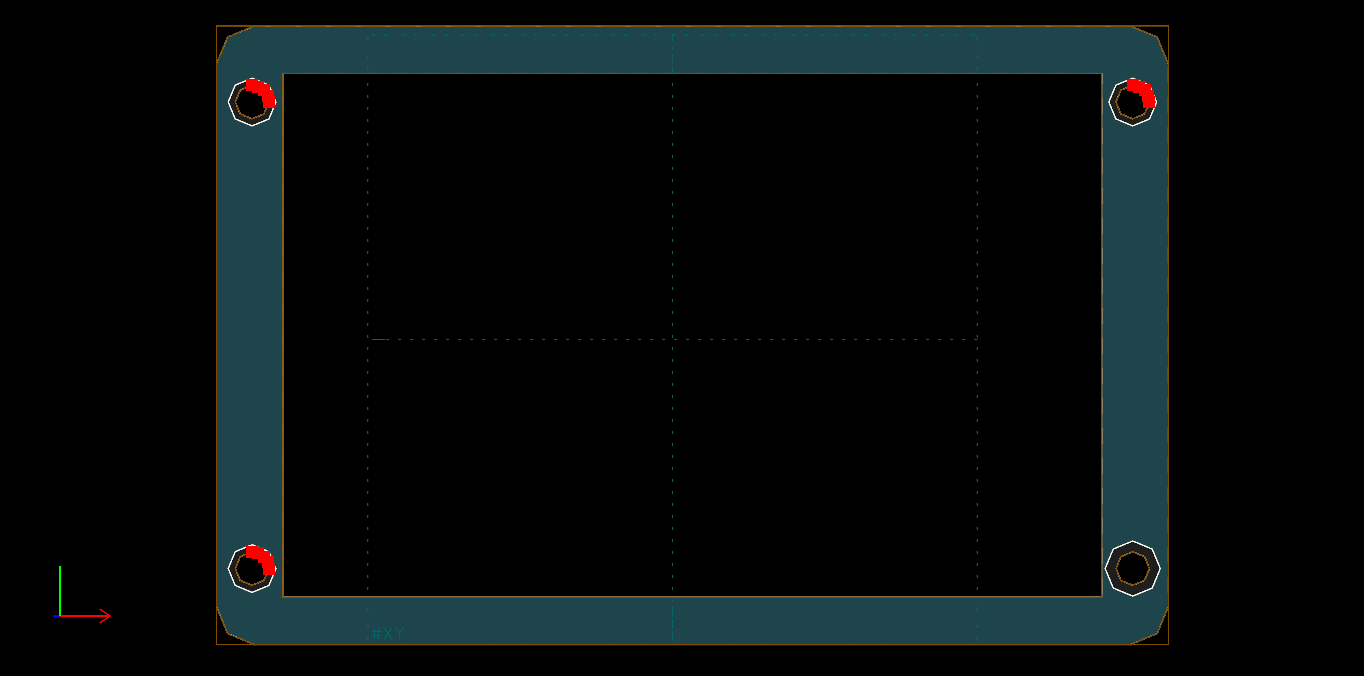

Here is the 3D model of the front face of the case. It can be downloaded as an obj here for 3D printing, and the SolveSpace slvs file can be downloaded here.

CASIO DC-810 PDA Case 3D Model

Here are the front and back together.

CASIO DC-810 PDA Case 3D Model
CASIO DC-810 PDA Case 3D Model

Physical 3D Printed Parts

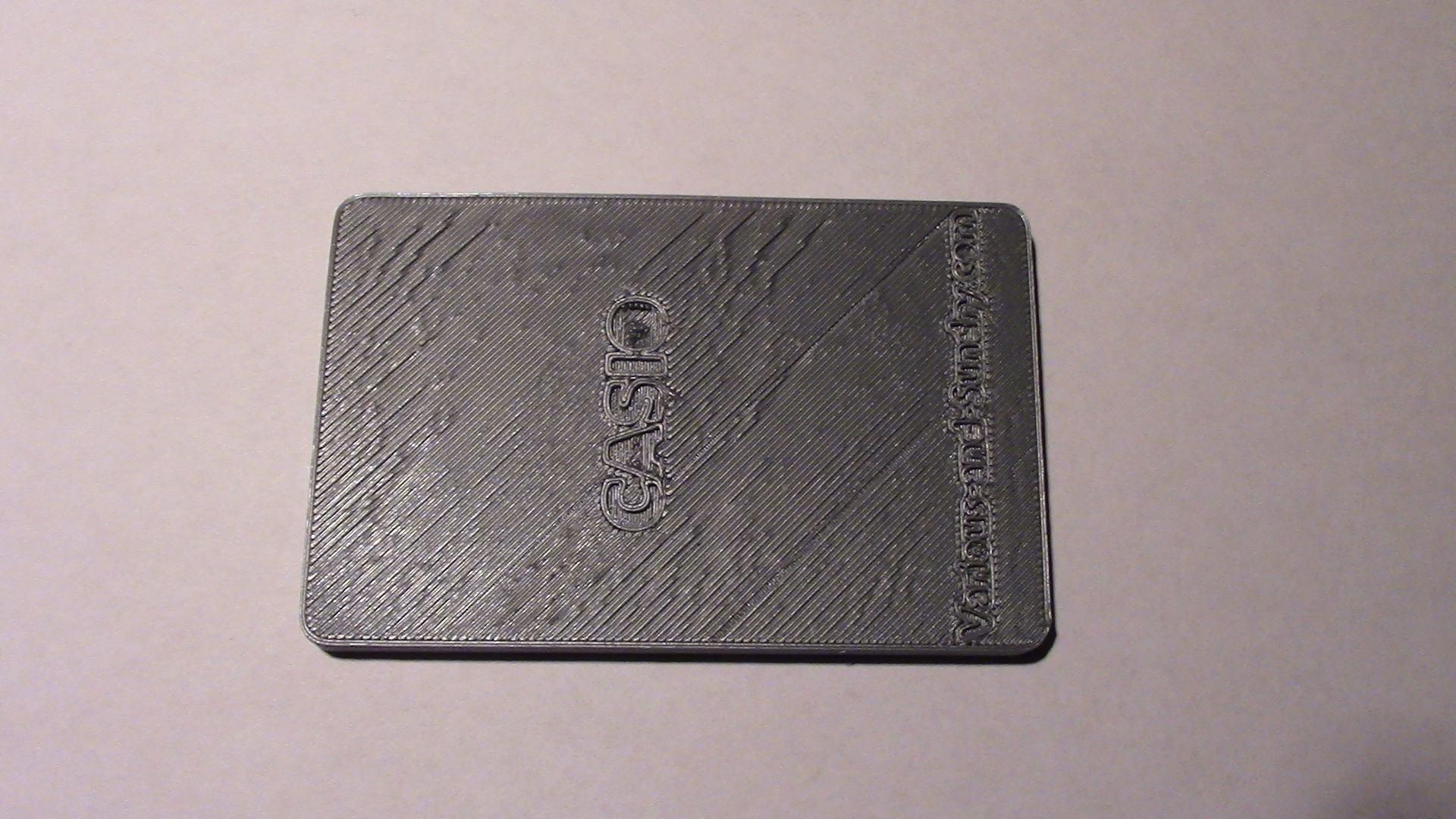

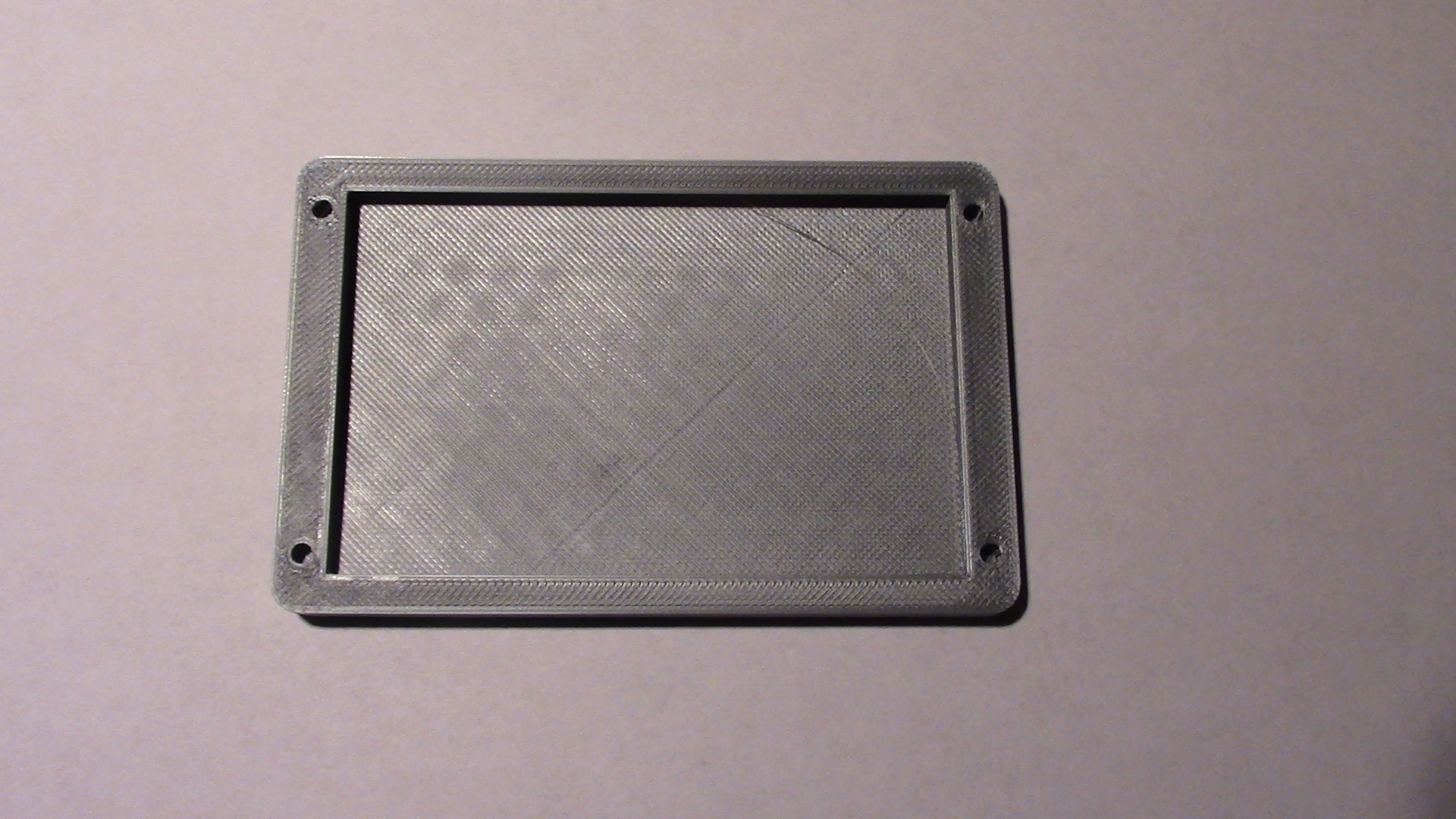

Here is the back of the case.

CASIO DC-810 PDA Case

The part in this picture did not print overly well, but that has nothing to do with the 3D file. It can print much cleaner.

CASIO DC-810 PDA Case

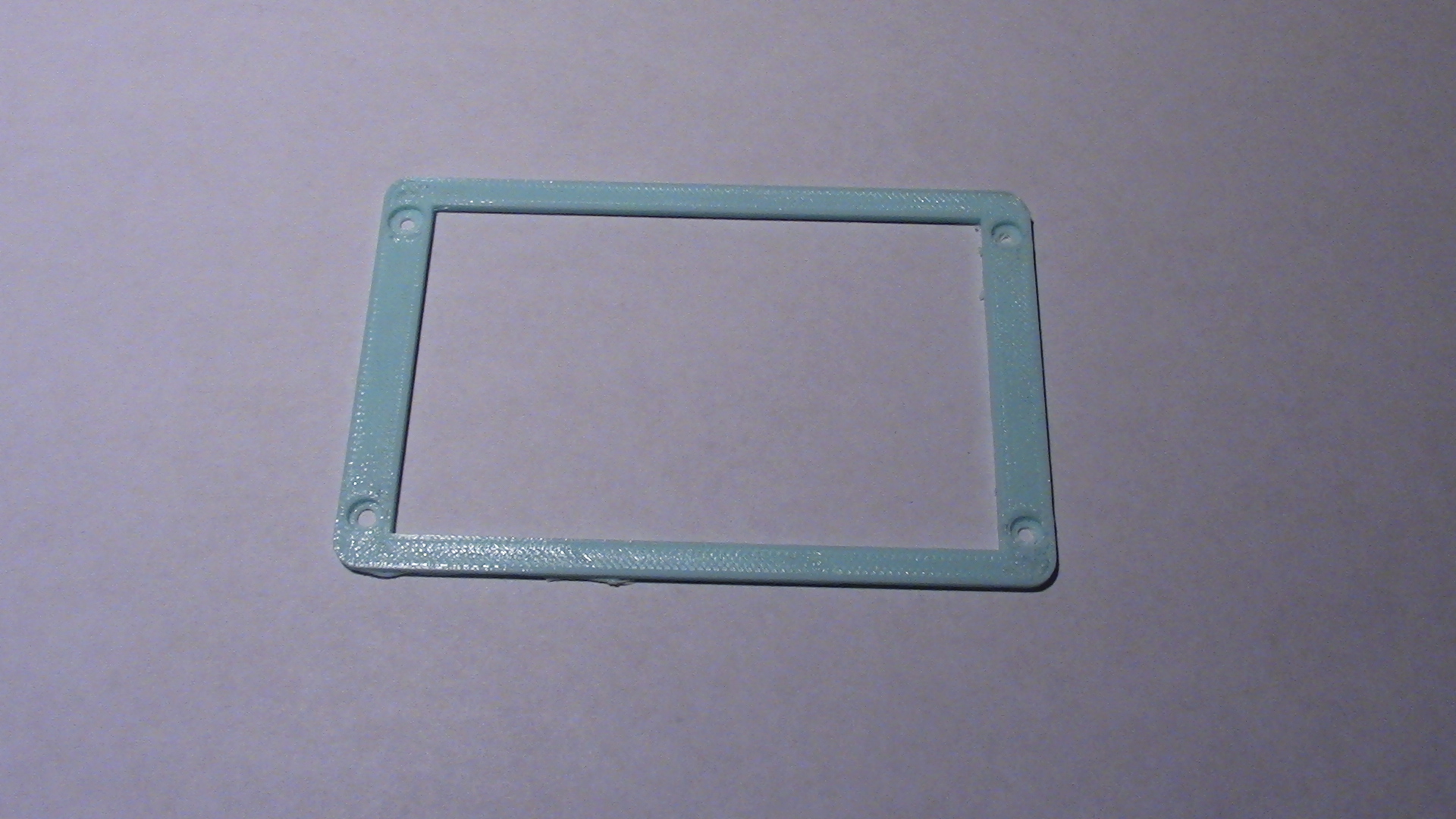

Here is the front face of the case.

CASIO DC-810 PDA Case

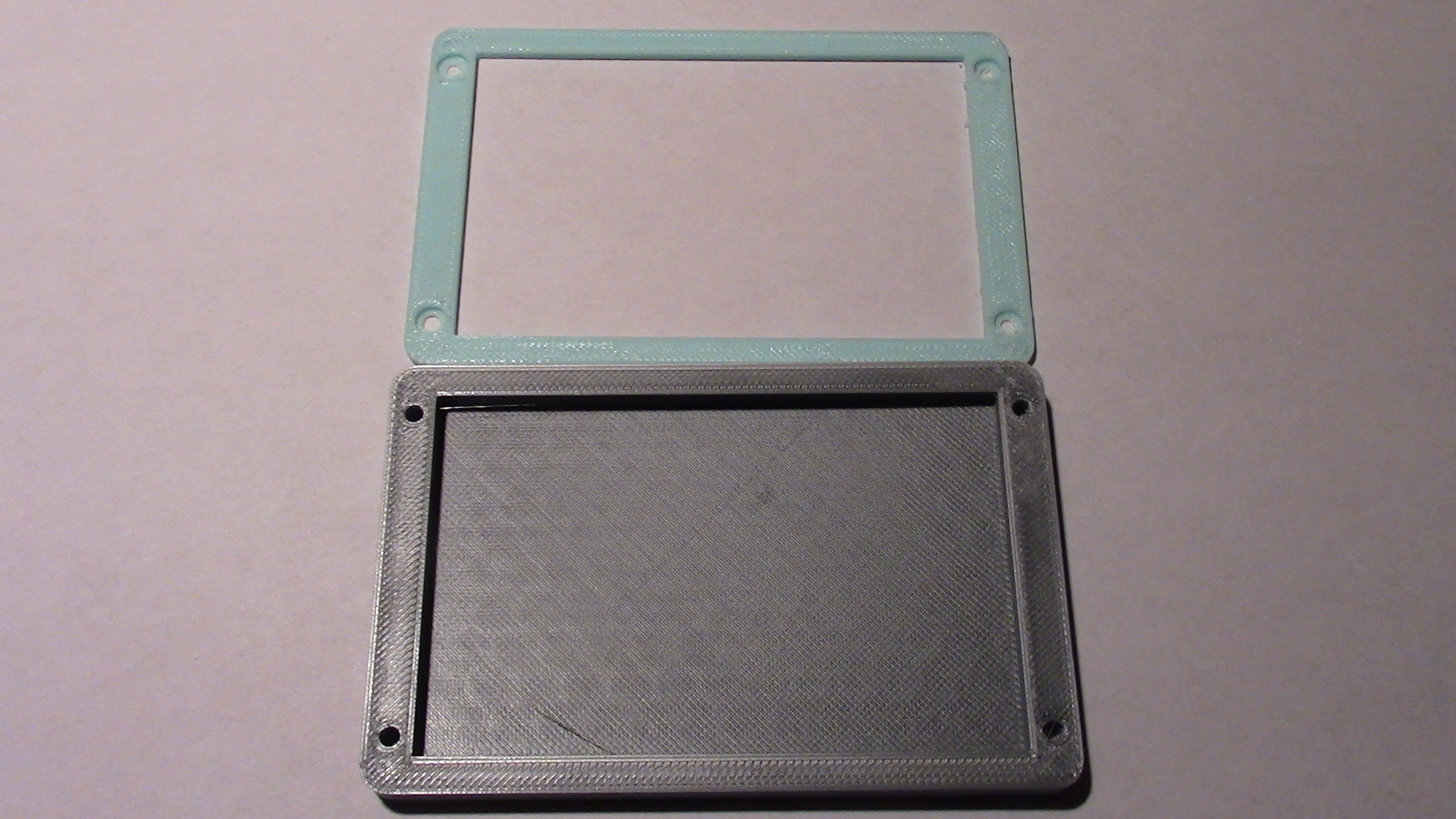

Here are the front and back side-by-side.

CASIO DC-810 PDA Case

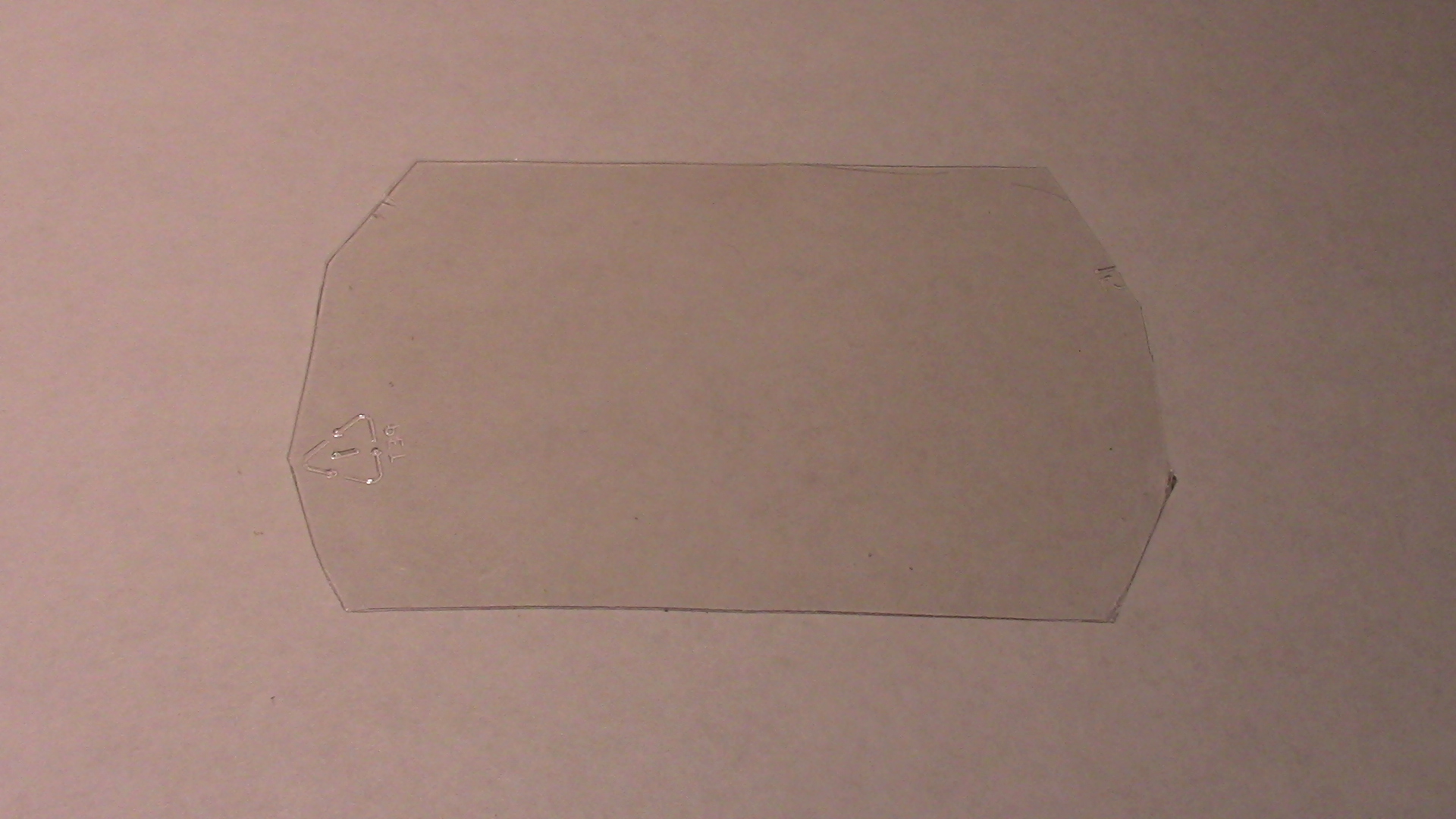

A thin, clear piece of plastic is needed as a screen cover. I used a piece of plastic cut out of a plastic lid.

CASIO DC-810 PDA Case

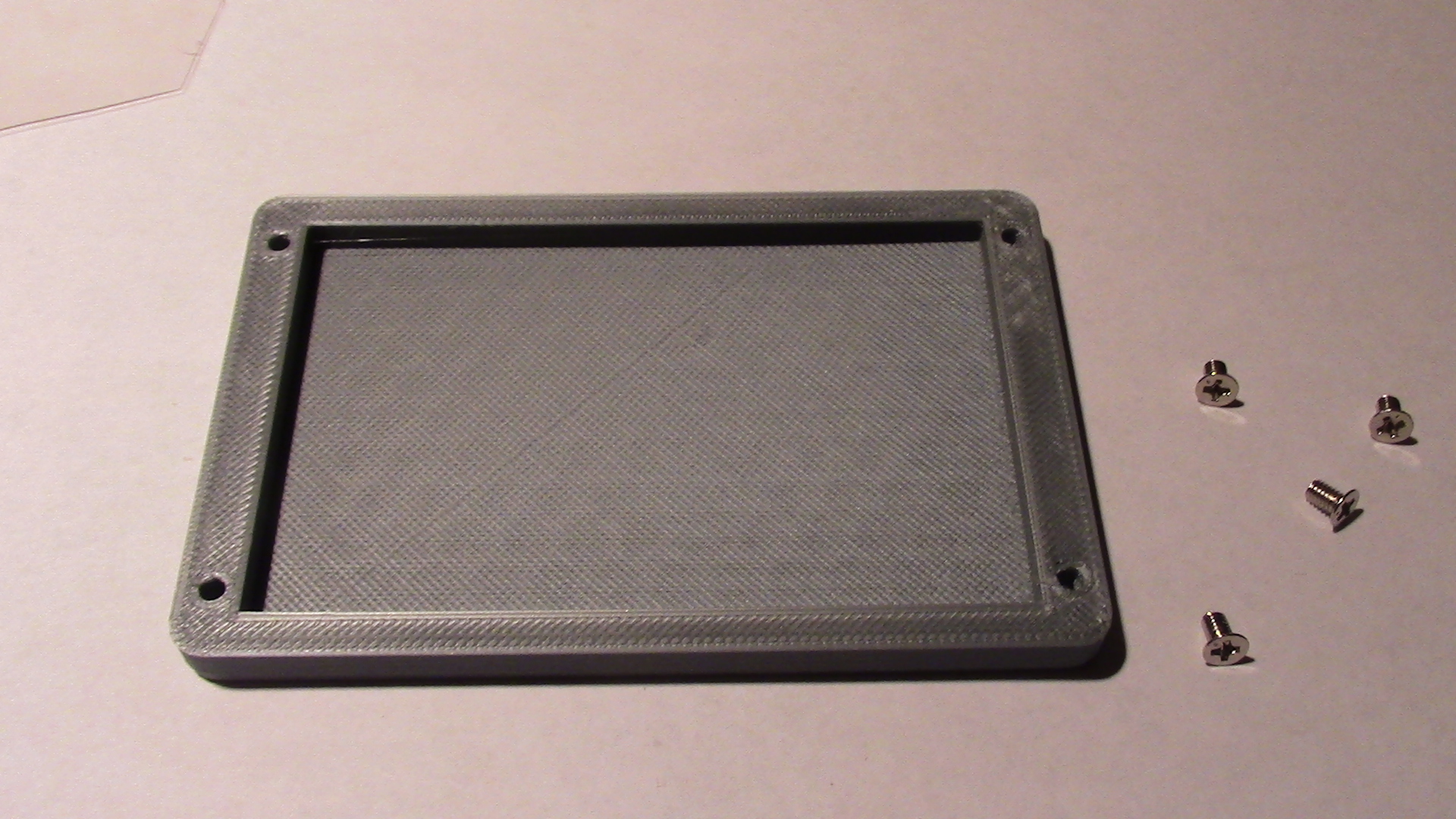

The screws used have a 4mm stalk with a 3mm diameter. The head of the screws are about 1mm think with a 5mm diameter.

Piece of Plastic

Here is the PDA in the back of the case.

CASIO DC-810 PDA Case

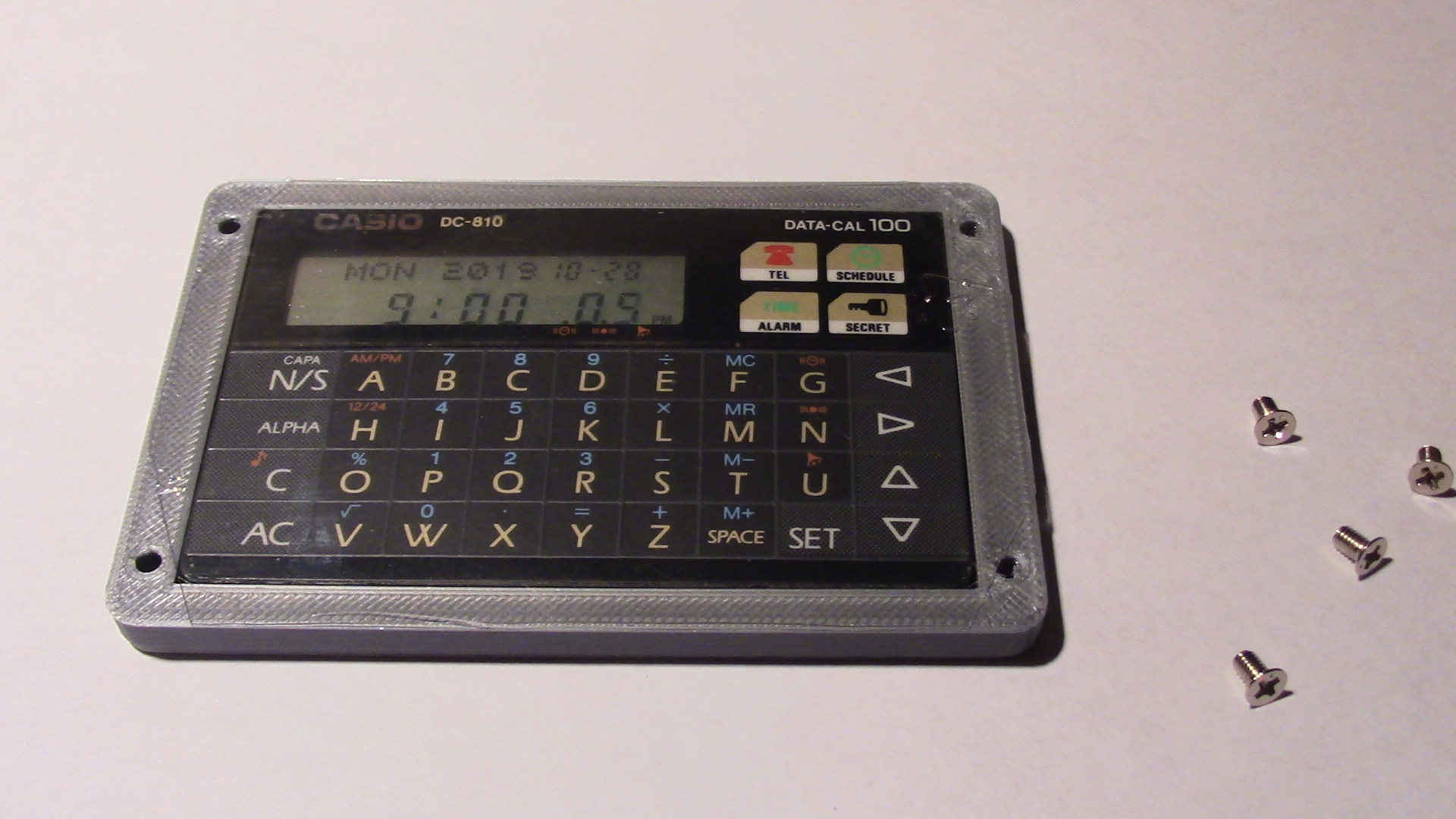

Here is the PDA in the back of the case with the clear plastic piece on top. The clear plastic is difficult to see in this picture.

CASIO DC-810 PDA Case

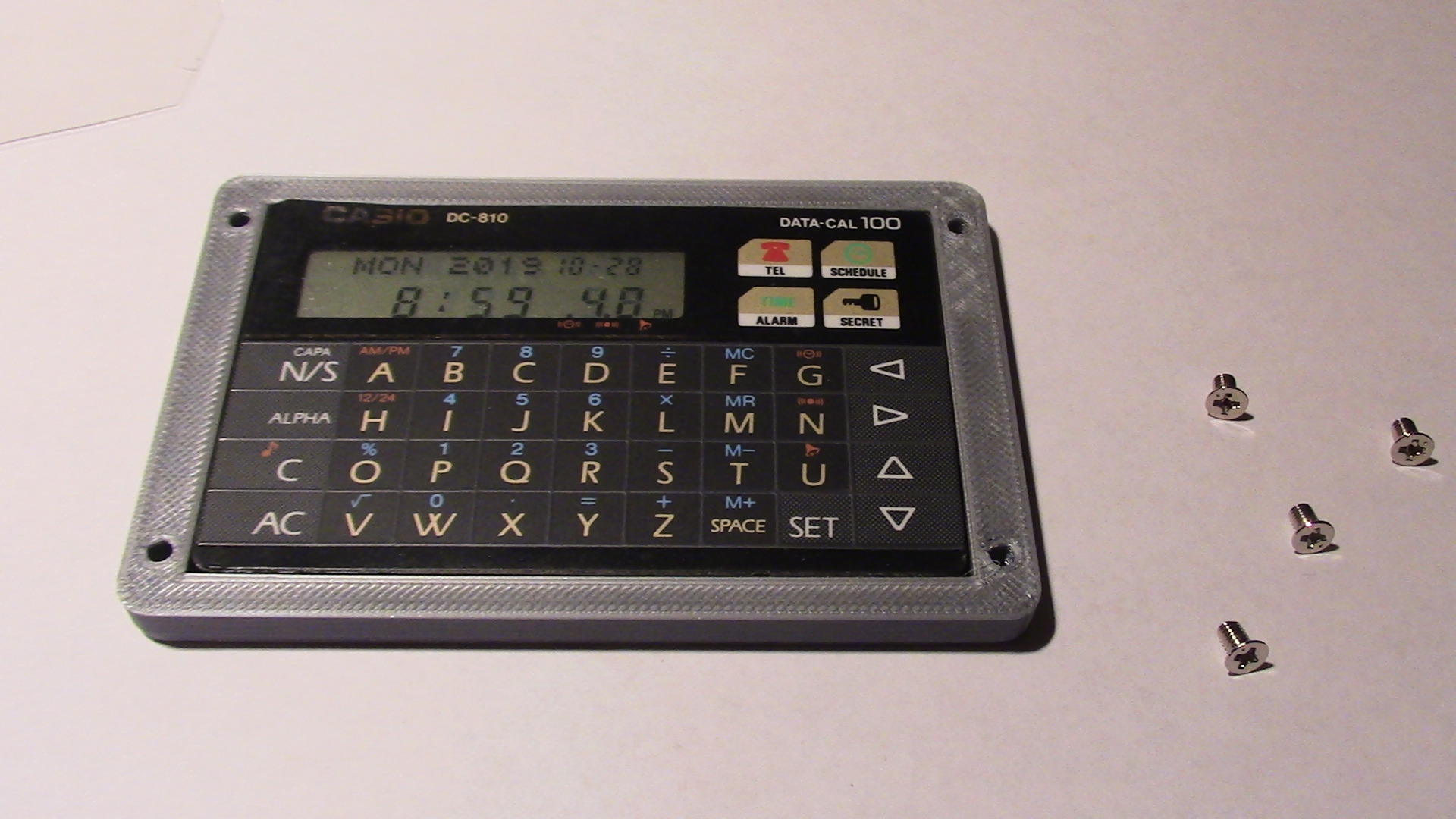

Here, the front face has been added.

CASIO DC-810 PDA Case

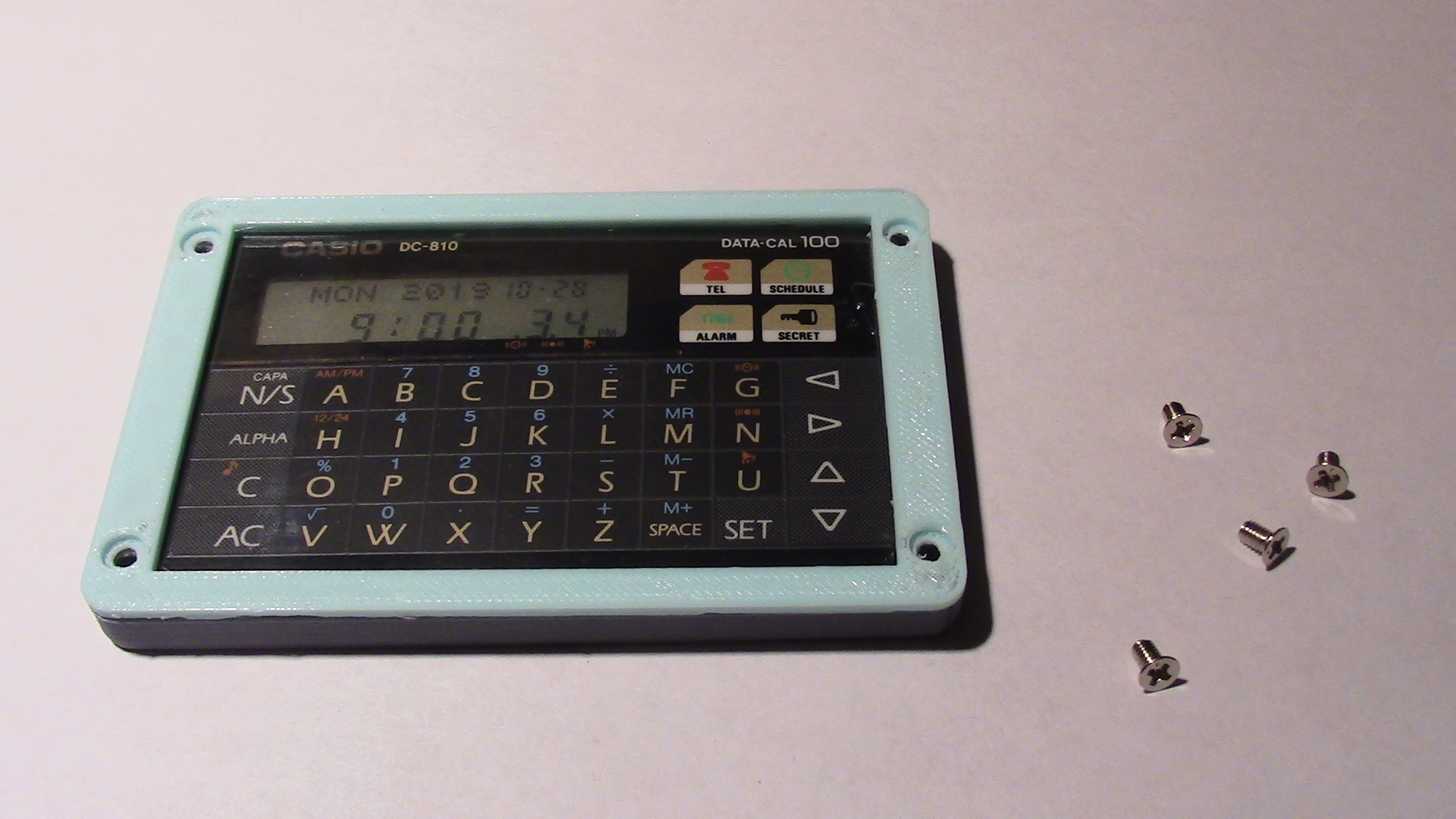

Here is the fully assembled case.

CASIO DC-810 PDA Case
